PRODUCTBall Valve

Utilizing more than 30 years of ball valve manufacturing experience,
providing high quality and diverse products

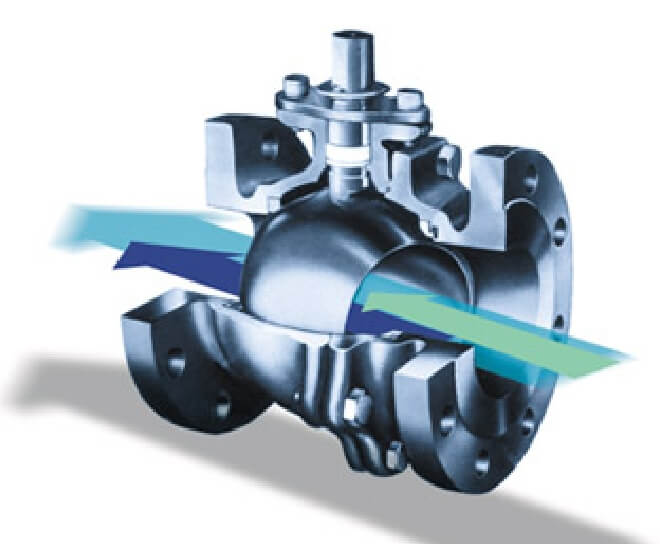

Since opening and closing operation is achived by 90° rotation, the operation time is short. The flow path is straight and the pressure loss is small.
Excellent airtightness is obtained and it is suitable for on / off operation.
KVC's ball valves can be offered in a wide variety of high quality products by utilizing the long manufacturing experience of more than 30 years.

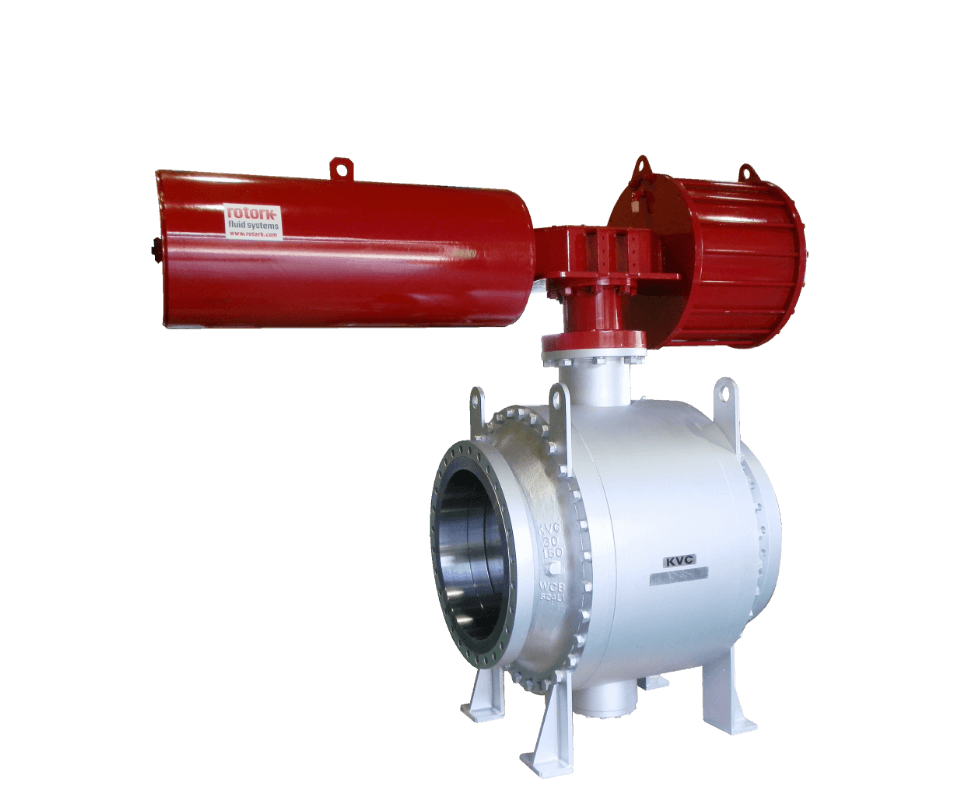

Versatile and economic seriesMetal Seat Ball Valve

It is a ball valve that can be used in harsh conditions for fluids that are difficult to handle with soft seats (e.g. (powder, slurry, high-viscosity fluid), with frequent opening and closing conditions and in high temperature service.
Depending on the fluid conditions, various hardening treatments can be applied to the seat and ball sliding parts to demonstrate excellent performance.
Standard permissible leakage from the seat is as per ANSI / FCI 70-2 Class V. Please contact us for more severe leaks.

Metal Seat Ball Valve Details
Model 2-way ball valve, 3-way ball valve (L,T port)
Material Carbon Steel, Stainless Steel, Alloy Steel, Hastelloy, Aluminium Bronze, Duplex Stainless Steel & Other
Pressure Class JIS10K-63K, ANSI150Lb-1500Lb
End Connection Butt Weld, Flange (FF, RF, RTJ)
Operation Manual, Pneumatic, Hydraulic, Electric Motor
Size 1/4"(8mm)-36"(900mm)

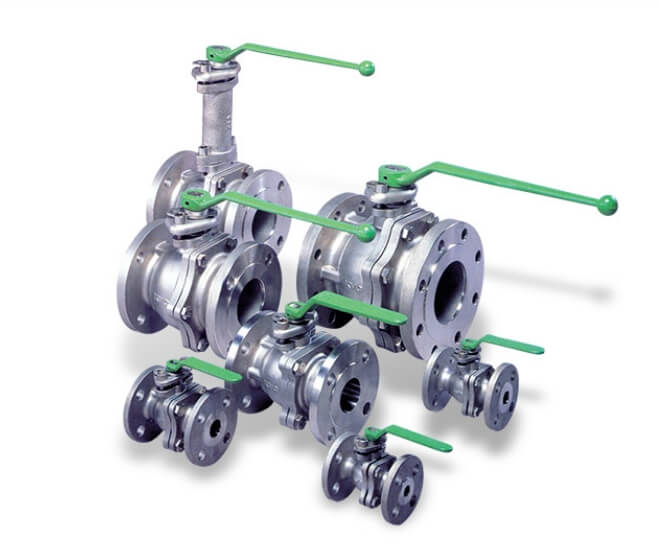

The definitive version of a flanged ball valveGeneral Ball Valve (Soft Seated)

The seat material can be Teflon, nylon or peak and it can be selected widely according to the application. It is a valve that can be used for a wide range of applications other than general purpose such as water and gas. (e.g. steam, chemicals...)
Fire safe construction and antistatic mechanism can also be provided.

Soft Seated Ball Valve Details
Model 2-way ball valve, 3-way ball valve (L,T port)
Material Carbon Steel, Stainless Steel, Alloy Steel, Hastelloy, Aluminium Bronze, Duplex Stainless Steel & Other
Pressure Class JIS10K-63K, ANSI150Lb-2500Lb
End Connection Butt Weld, Flange (FF, RF, RTJ)
Operation Manual, Pneumatic, Hydraulic, Electric Motor
Size 1/4"(8mm)-42"(1050mm)

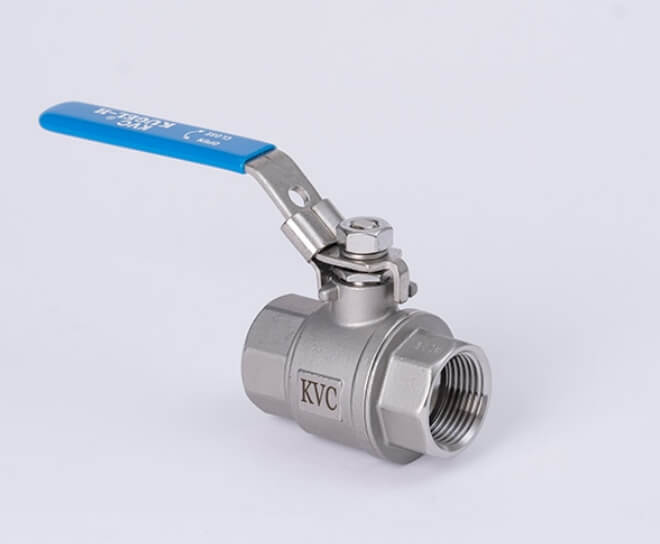

Wide use in various piping and equipmentKUGEL-H® Kugel-H [Screw-in type, 2pc Body]

A screw-in type ball valve suitable for water, oil, and gas fluids.
Very robust type that can be used for to high pressure (up to 70 kg / cm2) at a low price. Equipped with a lock mechanism as standard.

Kugel-H Details
Model Soft seat, 2 pc body
Material Stainless Steel
Pressure Class W.O.G.1000(70kg/cm2)
End Connection Threaded (PT, NPT)
Operation Manual
Size 1/4" (50mm) ~ 4" (100mm)

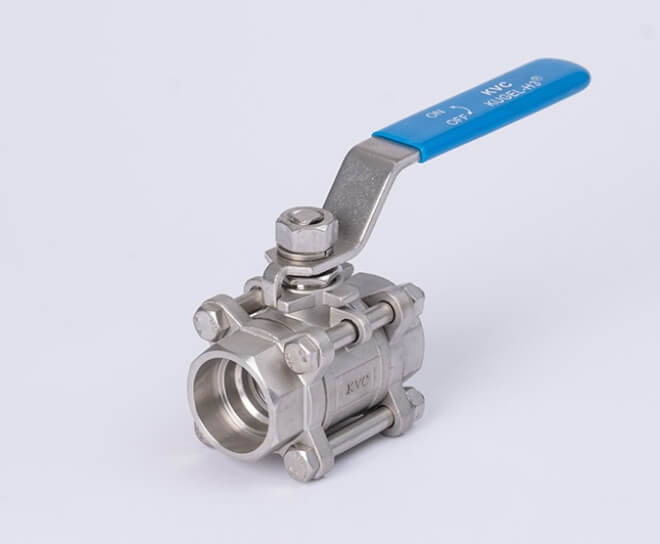

Screw-in or welded Ball Valve for serious conditionsKUGEL-H3® Kugel-H3 [Weld type, 3pc Body]

A ball valve with a 3-split structure suitable for water, oil, and gas fluids.
Robust type that can be used for high pressure (up to 70 kg / cm2) at a low price. Maintenance is easy because parts can be inspected while the valve is still installed in the piping. A lock mechanism can be equipped if necessary.

Kugel-H3 Details
Model Soft seat, 3 pc body
Material Stainless Steel
Pressure Class W.O.G.1000(70kg/cm2)
End Connection Socket Weld, Butt weld
Operation Manual
Size 1/4" (50mm) ~ 4" (100mm)

CONTACT

Please contact us for any inquiries or questions about product information, quotations, quality, delivery and other.
